3000 lb. Sling Boat Lift

3000 lb. Sling Boat Lift
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

$1,519.00


Product Information

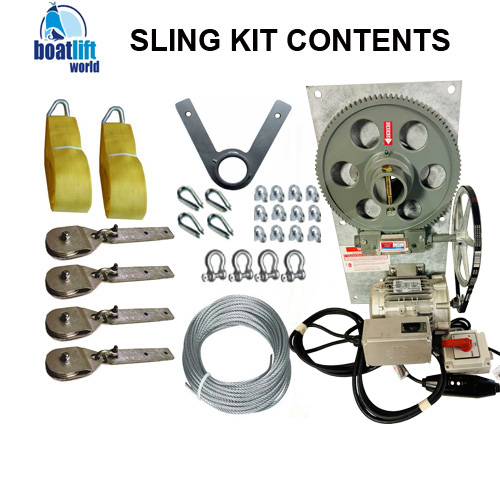

 Boat Lift 3000lb. Sling Kit Includes:
  • 3000lb Capacity Max, Gear Unit 3/4 HP TENV (Totally Enclosed Motor), 110 Volt (220 Volt optional) and In-line GFCI, Lock on Switch, 14' Electrical Wire Motor to Switch(1)

  • Deluxe Slings 4 in. x 12 ft.(2) We use two types of slings depending on availability. Slings are lead weighted, rated for 8,400 lbs. each.

  • 4 in. Pulleys *Galvanized Plates* 4 in. Aluminum Sheave w/Bronze 5/8 Bushing on 5/8 Shaft (4)

  • V Pipe Support - Galvanized w/Grease Fitting (Option For 2- Dual Pipe Supports w/ Hanger Brackets) (1)

  • 90 ft. Total 1/4 in. Galvanized Aircraft Cable (This will give 15' from upper pulleys down to all four corners to the slings with a 10' wide boat slip) (Call us if additional amount of cable is needed)

  • 1/4 in. Galvanized Drop Forged Cable Clamps (12)

  • Pulley Hangers 3/8 in. thick x 2 1/2 in. x 12 in. Galvanized (4)

  • Galvanized Shackles (8)

  • 1/4" Thimbles (4)

(2 in. ID Schedule 40 Pipe Not Included *Purchase Locally*)

Due to the variety of material thickness used in boat house construction, the bolts etc. are not supplied to connect the kit hardware to the boat house. These can be purchased locally to ensure the correct sizes. Normally 12 bolts/nuts required. Timbers not included. Check with boat manufacturer to ensure slings can be used to lift your boat. Motors are TENV Totally Enclosed Non Vented. They are not sealed motors and must be protected from rain and weather.

 Free Upgrades Include:
  • 4 in. Block Pulleys in Lieu of 3 in.

  • In-line GFCI in Lieu of In-Plug GFCI

  • 4 inch Deluxe Slings are Lead weighted In Two Places

  • Galvanized Steel Flat Gear Plate. The Gears Are Manufactured in the U.S.A With the Best of Materials.

  • 1 Year Electrical Warranty

  • 6 Year Gear Plate Warranty

FREE SHIPPING ON THIS ITEM
